Container Testing & Certification

Done Right & Under One Roof

When professional shipping container testing is required, CCT is simply the best choice for reliability and accuracy.
LEARN MORE ABOUT OUR SERVICES →

The CCT Way
container ship

CCT is a USCG Delegated Approval Authority.

Contact us to learn how we can help with your container testing and certification project.

ISO and CSC Testing & Certification

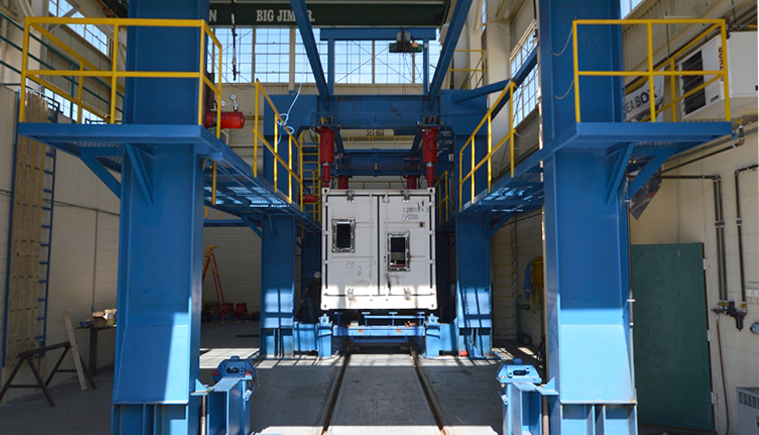

The Ideal Solution

Container Certification and Testing LLC (CCT) is a “Delegated Approval Authority” by the United States Coast Guard (USGC). This qualifies us to undertake container certification for the “Convention of Safe Containers” or “CSC”. CCT provides professional services that include CSC certification, compliance with relevant ISO TC-104 standards on containers, and the recommended practices of other transportation safety standard associations.

0

DEDICATED TO TESTING SHIPPING CONTAINERS

LET'S CONNECT

0

KNOWLEDGEABLE, SPECIALIZED & ACCURATE

LET'S CONNECT

Container Test 1

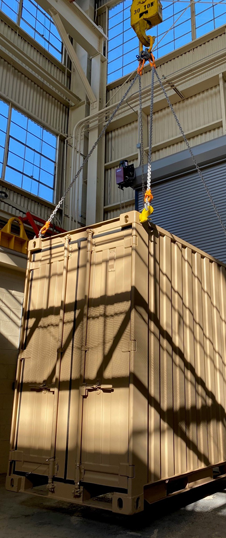

Top Lift Test
Container Testing 2
Container Test 3
4 Stories of Testing

Eliminate Testing Anomalies with our
One Stop Shop.

Shipping Container Testing and Certification

High Performance
Testing Equipment

Individualized
Testing Plan

Secure
Testing Facility


The Intermodal System is Baked into our DNA

Success in mission critical projects with high stakes require a team that wants to win. Partner with us. CCT is the pre-eminent authority on container testing. Allow us the opportunity to help you devise and execute an individualized testing strategy. Get the job done right the first time!

Container Testing Professionals
8 steps

Steps

To Accurate Testing

CCT

With CCT your satisfaction is guaranteed.

Our process ensures that your shipping containers receive the exacting attention required to reliably test and certify.

Initial Inquiry
1

INITIALINQUIRY

Preliminary discussion and project overview

Application Submission
2

APPLICATIONSUBMISSION

Client submits GA drawings and associated documentation for review by CCT

CCT Reviews
3

CCTREVIEW

CCT reviews all pertinent documentation in preparation for formal project quotation

Test Plan Quote
4

TEST PLAN &QUOTE

CCT provides a detailed quotation and a comprehensive/individualized testing plan

Acceptance and Scheduling
5

ACCEPTANCE &SCHEDULING

Client approves quotation and executes contract

Project Testing
6

PROJECTTESTING

Testing plan is put into action

Award Certification
7

AWARDCERTIFICATION

Requisite certifications are awarded upon successful completion of testing

Review and Inspection
8

REVIEW &INSPECTION

If required as part of the testing plan of action, further review and inspection of individual identical units

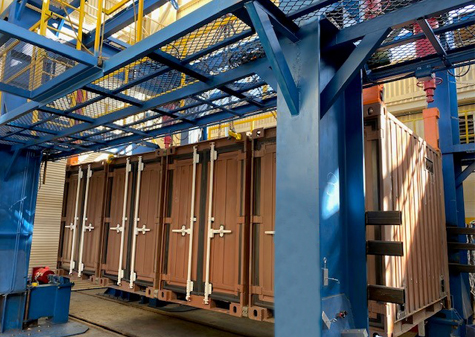

Our Services

CCT - CONTAINER CERTIFICATION & TESTING LLC.

CCT's mission is to give clients a reliable and accurate confirmation of their container design and certification. We eliminate testing "anomalies", often encountered by others, with our top-notch equipment and professional engineering staff. CCT specializes in ISO and CSC testing/certification but, can also customize specific tests to fit individual or specialized needs.

MORE ABOUT TESTING

* CCT can perform over 12 different container testing variations.

Shipping Container Certification
Equipment on Laptop

Why Choose CCT

CCT was established to offer container owners, lessors, operators and manufacturers a superior certification process; both in terms of the application for services and the cost.

Top Notch Equipment and Staff!

CCT boasts one of the most sophisticated container testing facilities in the world and a Principal Surveyor with over 50 years of container experience.

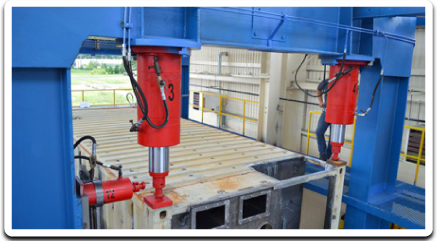

Testing Equipment
Testing Equipment

13+ ISO TESTS

  • Stacking
  • Lifting from the four top corner fittings
  • Lifting from the four bottom corner fittings
  • Restraint (Longitudinal)
  • Strength of end walls
  • Strength of side walls
  • Strength of the roof
  • Floor Strength
  • Transverse Racking
  • Longitudinal Racking
  • Lifting from fork-lift pockets
  • Shoring Slots (where fitted)
  • Weatherproof Verification
  • Other Practical Tests Requirements
  • CONTAINER TYPE SIZE COMPARISON

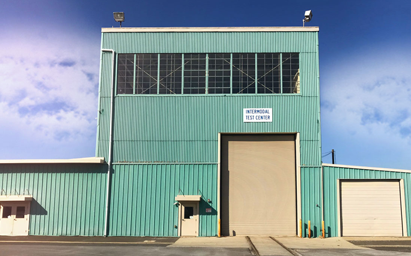

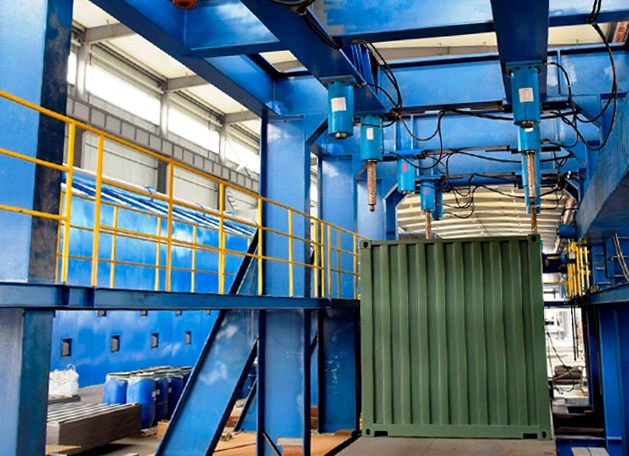

Our fully internal test center has the capability to test quadcons, tricons, bicons, 20’, and 40’ containers for CSC/ ISO compliance. We also inspect fleets after the prototype has been tested and certified. For this we perform onsite manufacturer visits to inspect both the facility and the workmanship of the identical container fleet in order to certify the secondary containers.

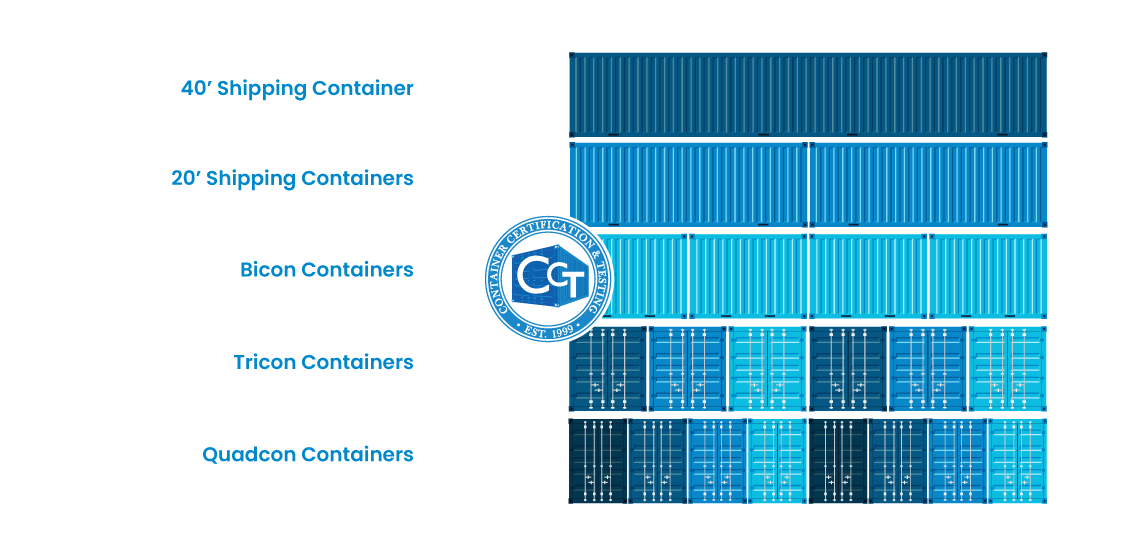

  • HOW CONTAINER SIZES "STACK UP" TO EACH OTHER
Shipping Container Size Comparison

CSC Certification

CONVENTION FOR SAFE CONTAINERS (CSC)

CCT provides professional services that include CSC certification

ENSURE - The purpose of CSC is to ensure that containers are safe and built with consistency.

VALIDATE - CCT verifies the precise dimensioning of corners, functionality standards, and weather tightness by measuring the capacity, weight, and resistance to the extraordinary forces that containers receive while in transit – especially at sea.

INDEPENDENT AND ACCESSIBLE - As a USCG delegated approval authority the CCT testing facility is open to any organization requiring testing of their ISO Shipping containers.

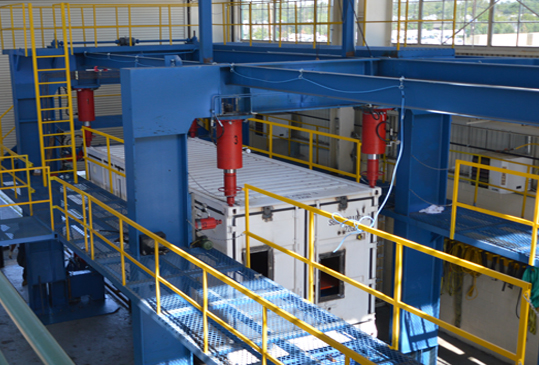

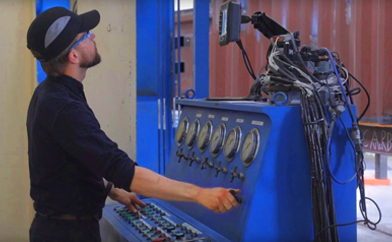

Testing Equipment Behind the controls
Testing Equipment
International Organization for Standardization

ISO Certification

To be an ISO certified container the newly manufactured container or modified container must pass all testing requirements per ISO 1496-1 tests or other pertinent ISO testing standard per container type. Once it passes all the tests it can be ISO certified and fit to travel safely internationally by ship, truck, and rail. It must also be in compliance with ISO 668, ISO 1161, and ISO 6346

ISO certification certifies that a management system, manufacturing process, service, or documentation procedure has all the requirements for standardization and quality assurance.

ISO

CONTAINER COMPLIANCE BREAKDOWN

Understanding the basics.

Layouts

ISO 668

Establishes a classification of series 1 freight containers based on external dimensions, and specifies the associated ratings and, where appropriate, the minimum internal and door opening dimensions for certain types of containers.

Layouts

ISO 1161

Establishes the basic dimensions and the functional and strength requirements of corner castings and intermediate fittings for series 1 freight containers.

Layouts

ISO 1496

The basic specifications and testing requirements for ISO series 1 freight containers of the totally enclosed general purpose types and certain specific purpose types (closed, vented, ventilated or open top) which are suitable for international exchange and for conveyance by road, rail and sea, including interchange between these forms of transport.

Layouts

ISO 6346

Provides a system for general application for the identification and presentation of information about freight containers. Specifies an identification system with mandatory marks for visual interpretation and optional features for automatic identification and electronic data interchange and a coding system for data on container size and type.

CONFIDENCE Just Some of Our Clients

REPRESENTING MULTIPLE INDUSTRY SECTORS

LARGE AND SMALL ORGANIZATIONS ALIKE

PARTNER WITH CCT FOR THEIR TESTING AND CERTIFICATION NEEDS
